Debris/Trash Catcher is used during well clean-up, flowback and surface well test operations.

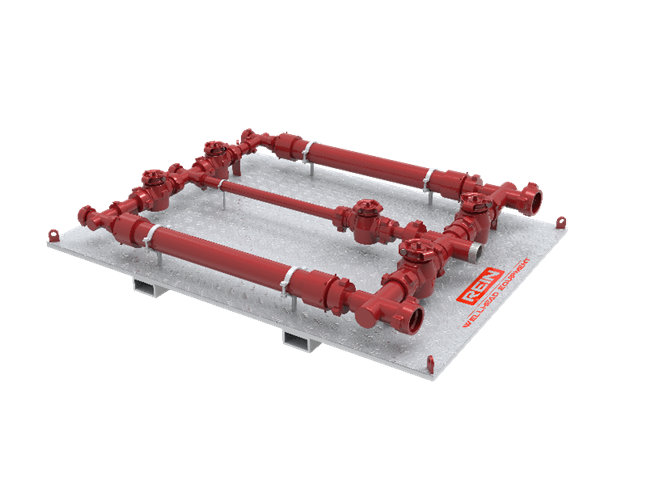

Debris Catcher Plug Valve Manifold is a special type of oilfield manifolds designed to catch debris/trash from well stream during flowback operations. Debris Catcher Manifold consists of several plug valves or slab gate valves, catcher-cylinder, high-pressure fittings, and pressure gauge.
Pressure rating of Debris Catcher Plug Valve Manifold
MPa | 35 | 70 | 105 |
psi | 5000 | 10000 | 15000 |
Sizing of Debris Catcher Plug Valve Manifold
Inlet Connection | 2” Fig.1502, 3” Fig.1502, API Flange 3.1/16”-10K/15K, API Flange 4.1/16”-10K/15K, API Flange 5.1/8”-5K, |
Outlet Connection | 2” Fig.1502, 3” Fig.1502, API Flange 3.1/16”-10K/15K, API Flange 4.1/16”-10K/15K, API Flange 5.1/8”-5K, |
Catcher Barrel Sizing
In. | 3 | 4 | 5 | 6 | 7 |
Code & Standards
API 6A |
NACE MR-0175 |
ISO 15156-1, -2 |
ASME B31.3 |
PED 97/23/EC |

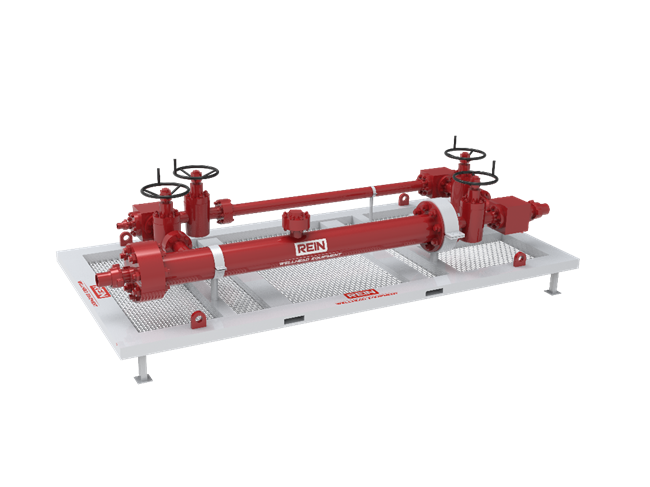

Single Barrel Debris Catcher is another type of debris/trash catcher supplied by Rein Wellhead Equipment. Debris Cather consists of barrel with separation element, slab gate valves or plug valves, subbed tees/crosses, hammer unions, flanges, fasteners, supports and skid with lifting lungs. Debris Catcher is widely used in flowback, well clean-up and well testing applications.
Rein Wellhead Equipment designs, and supplies Debris Catcher, which is designed to handle high-pressure, and to work under harsh working environment. Rein Wellhead Equipment is a supplier and manufacturer of Debris Catcher in China.
Pressure rating of Single Barrel Debris Catcher
MPa | 35 | 70 | 105 |
psi | 5000 | 10000 | 15000 |
Sizing of Single Barrel Debris Catcher
Inlet Connection | 2” Fig.1502, 3” Fig.1502, API Flange 3.1/16”-10K/15K, API Flange 4.1/16”-10K/15K, API Flange 5.1/8”-5K, |
Outlet Connection | 2” Fig.1502, 3” Fig.1502, API Flange 3.1/16”-10K/15K, API Flange 4.1/16”-10K/15K, API Flange 5.1/8”-5K, |
Catcher Barrel Sizing
In. | 3 | 4 | 5 | 6 | 7 |
Code & Standards
API 6A |
NACE MR-0175 |
ISO 15156-1, -2 |
ASME B31.3 |
PED 97/23/EC |
Double Barrel Debris Catcher with hydraulic and manual gate valves allow the oilfield service to conduct flowback and well clean-up works continuous without work interruption due to the maintenance of debris catcher. Barrels of debris catcher ensures separation of trash coming from formation after the hydraulic fracturing, hydraulic slab gate valves ensure remote flow control, while manual gate valves provide additional means of flow control in case of unavailability of hydraulic power.
Standards | API 6A |
Environment temperature | from -60°С to +40°С |
Working temperature | LU (51℉/-46℃ ~ 250℉/121℃) |
Material Grades | AA, BB, CC, DD, EE, FF, HH, FF |
Specification level | PSL1 - PSL4 |
Performance level | PR1, PR2 |
Material Class | Min. Material Requirements | |
Outer parts | Internals | |
AA | Carbon or Low Alloy Steel | Carbon or Low Alloy Steel |
BB | Carbon or Low Alloy Steel | Stainless Steel |
CC | Stainless Steel | Stainless Steel |
DD | Carbon or Low Alloy Steel | Carbon or Low Alloy Steel |
EE | Carbon or Low Alloy Steel | Stainless Steel |
FF | Stainless Steel | Stainless Steel |
HH | Corrosion Resistant Alloy | Corrosion Resistant Alloy |
ZZ | Determined by User | Determined by User |
Note: Classes from DD shall be NACE MR0175/ISO 15156 compliant
API Classification | Operating Temperature | |||
Min (°C) | Max (°C) | Min (°C) | Max (°C) | |
K | -60 | 82 | -75 | 180 |
L | -46 | 82 | -50 | 180 |
N | -46 | 60 | -50 | 140 |
P | -29 | 82 | -20 | 180 |
S | -18 | 60 | 0 | 140 |
T | -18 | 82 | 0 | 180 |
U | -18 | 121 | 0 | 250 |
V | 2 | 121 | 35 | 250 |
X | -18 | 180 | 0 | 350 |
Y | -18 | 345 | 0 | 650 |
Rein Wellhead Equipment designs and supplies Debris Catchers, which are designed to handle high-pressure, and to work under harsh working environment. Rein Wellhead Equipment is a supplier and manufacturer of Debris Catchers, Catcher Manifolds and other flowback equipment from China.
