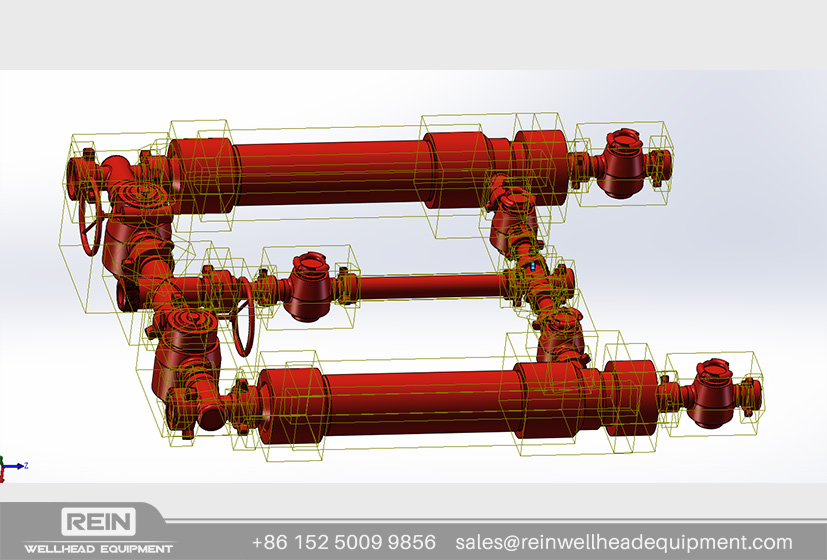

Debris Catcher Plug Valve Manifold
Debris Catcher Plug Valve Manifold
Debris Catcher Plug Valve Manifold is a special type of oilfield manifolds designed to catch debris/trash from well stream during flowback operations. Debris Catcher Manifold consists of several plug valves or slab gate valves, catcher-cylinder, high-pressure fittings, and pressure gauge.
Rein Wellhead Equipment designs and supplies Debris Catcher Manifolds, which are designed to handle high-pressure, and to work under harsh working environment. Rein Wellhead Equipment is a supplier and manufacturer of Debris Catcher Manifolds in China.
Pressure rating of Debris Catcher Plug Valve Manifold
MP | 35 | 70 | 105 |
| psi | 5000 | 10000 | 15000 |
Sizing of Debris Catcher Plug Valve Manifold
Inlet Connection | 2” Fig.1502, 3” Fig.1502, API Flange 3.1/16”-10K/15K, API Flange 4.1/16”-10K/15K, API Flange 5.1/8”-5K, |
Outlet Connection | 2” Fig.1502, 3” Fig.1502, API Flange 3.1/16”-10K/15K, API Flange 4.1/16”-10K/15K, API Flange 5.1/8”-5K, |

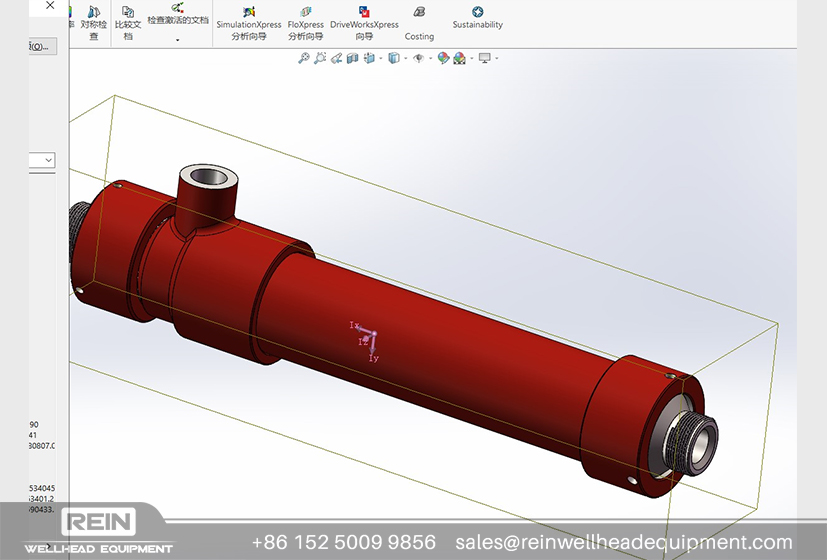

Catcher Barrel Sizing
| in. | 3 | 4 | 5 | 6 | 7 |
Code & Standards
API 6A |
NACE MR-0175 |
ISO 15156-1, -2 |
ASME B31. |
PED 97/23/EC |
Standards | API 6A |
Environment temperature | from -60°С to +40°С |
Working temperature | LU (51℉/-46℃ ~ 250℉/121℃) |
Material Grades | AA, BB, CC, DD, EE, FF, HH, FF |
Specification level | PSL1 - PSL4 |
Performance level | PR1, PR2 |
Material Class | Min. Material Requirements | |
Outer parts | Internals | |
AA | Carbon or Low Alloy Steel | Carbon or Low Alloy Steel |
BB | Carbon or Low Alloy Steel | Stainless Steel |
CC | Stainless Steel | Stainless Steel |
DD | Carbon or Low Alloy Steel | Carbon or Low Alloy Steel |
EE | Carbon or Low Alloy Steel | Stainless Steel |
FF | Stainless Steel | Stainless Steel |
HH | Corrosion Resistant Alloy | Corrosion Resistant Alloy |
ZZ | Determined by User | Determined by User |
Note: Classes from DD shall be NACE MR0175/ISO 15156 compliant
API Classification | Operating Temperature | |||
Min (°C) | Max (°C) | Min (°C) | Max (°C) | |
K | -60 | 82 | -75 | 180 |
L | -46 | 82 | -50 | 180 |
N | -46 | 60 | -50 | 140 |
P | -29 | 82 | -20 | 180 |
S | -18 | 60 | 0 | 140 |
T | -18 | 82 | 0 | 180 |
U | -18 | 121 | 0 | 250 |
V | 2 | 121 | 35 | 250 |
X | -18 | 180 | 0 | 350 |
Y | -18 | 345 | 0 | 650 |
If you require any further information,feel free to contact us
We would be glad to provide you immediate technical assistance and cost-effective proposal!
