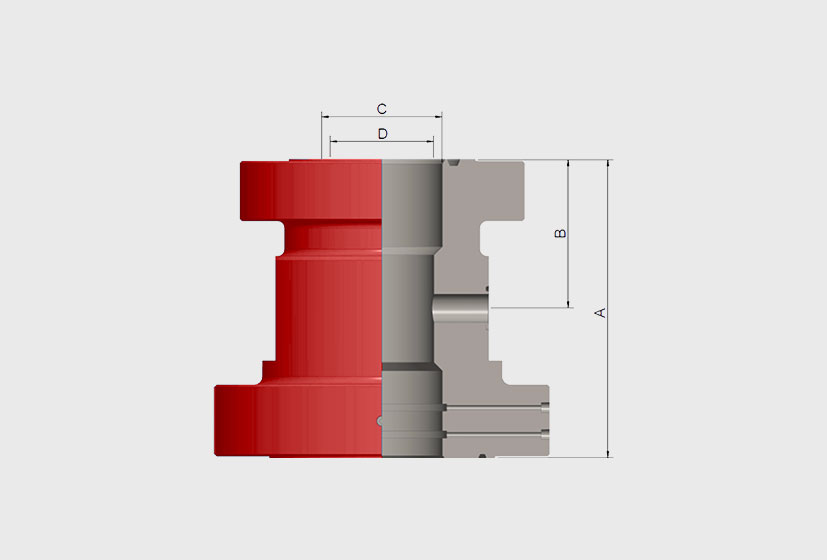

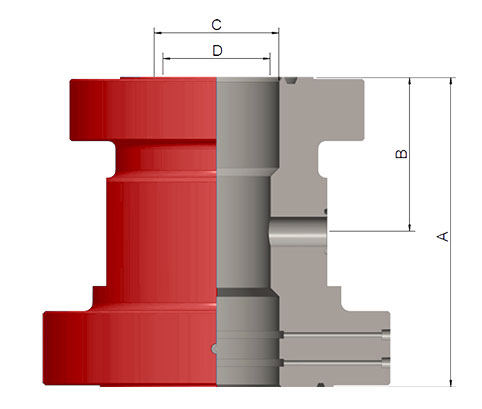

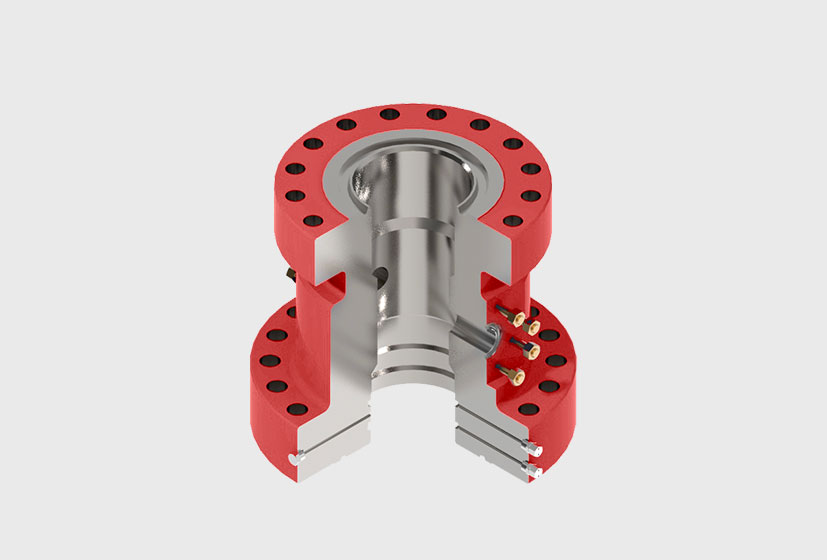

Casing Head Spool

Rein's casing spools feature a versatile straight bore design that can accept a wide variety of slip and mandrel type casing hangers.

Features

• l Features a 45° landing shoulder capable of supporting maximum loads

• l Prevents test plugs from wedging under pressure

Outlets

• l Line Pipe Outlets

• l Studded Side Outlets

Casing Hanger Compatibility

• l C-21 and C-22 slip-type casing hangers

• l Mandrel style casing hangers

Availability

• l Additional sizes available upon request

• l Available in C-29 profile (Available upon request)

Lock screws

• l C-22-BP casing heads are supplied with two lock screws for wear bushing retention

• l C-22-L and C-29-L casing heads are supplied with a full set of lock screws for mandrel casing hanger and packoff retention (Available upon request)

Bottom Preparations

• l PE/BG bottom, for use with PE secondary seal bushing (Standard)

• l HPE bottom, for use with HPE secondary seal bushing for high pressure applications (Available upon request)
